Task Lineage Generator

d3.jsgolangtaskdata visualizationgraphviz-dotdaglineage

A simple tool for rendering task lineage diagrams written in Golang. Try Live Demo

Project Background

The data team I work with has developed a custom-built data pipeline consisting of ETL processes and machine learning models. When a task fails or is delayed, all subsequent tasks must be rerun. The challenge lies in determining the cascading effects of rerunning a task, as our pipeline includes over 250 tasks with complex interdependencies. Apart from common issues like data inconsistency and database overloads, understanding the downstream impact of an upstream task trigger has been a significant challenge.

When I started thinking about a solution, the concept of a graph immediately came to mind. If each task could be represented as a node and each dependency as an edge, we could visualize the entire pipeline as a graph. Visual programming languages like PureData and TouchDesigner have successfully implemented similar concepts by representing functions and data flows as nodes and edges. The beauty of using a graph is that beyond simply visualizing the pipeline, it could also enable us to perform queries and analyze task dependencies in more depth.

Having all the features we wanted and built explicitly to manage data pipelines, Apache Airflow offers a clear solution. However, adopting it would require extensive resources on rewriting the entire pipeline, deploying to our servers, and getting the entire team up to speed. Given the constraints at the time, I set out to develop a simpler solution that could integrate seamlessly into our existing pipeline without code migration. I believed that a well-designed visualization tool would resolve the lack of clarity.

Project Goal

Visualize task lineages as Directed Acyclic Graphs (DAGs)
Keep the solution as simple as possible
Seamless integration with our existing pipeline
Automatically refresh the visualization upon task specification (yaml) updates
Provide interactivity to enhance usability

Project Development

Technical Decisions

At the time, I frequently used GraphViz to create charts, and I realized it could be an ideal tool for visualizing task lineages. The key was to ensure it runs automatically whenever task specifications are updated. Since we use GitLab for version control, I leveraged GitLab CI to trigger jobs on code commits. The next question was how to encapsulate GraphViz within a CI environment and generate lineage diagrams from task specifications.

After some research, I found the Golang package goccy/go-graphviz, which provided all the necessary features, including graph representation and traversal via a Golang API. Along with the YAML package for reading task specifications, I was able to compile the entire project into a small binary that others could use, or package it into a Docker image for integration into CI tasks. The workflow was structured as follows:

flowchart LR
    subgraph tool["Task Lineage Generator CLI"]
    reader["YAML Reader"] --> node["Draw Nodes"] --> edge["Draw Edges"] --> out1["Construct Graph Meta"] --> out2["Output Diagram"]
    end
    yaml["Task Configs (YAML)"] --> tool
    tool --> diag["Lineage Diagrams"]
    tool --> meta["Graph Meta *reachability.json*"]

And the setup for the CI/CD pipeline:

Import task configurations as submodules of a main repo
For every task configuration update, trigger main repo’s reference update to trigger its CI
Run Task Lineage Generator in main repo’s CI
In the end of the CI, publish the lineage diagram

Interactive Interface

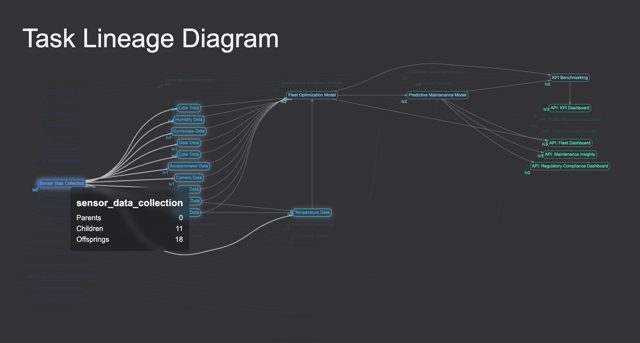

To enhance the diagram’s usability, I developed a simple website to host the SVGs with basic interactivity. Staying true to the simplicity goal, I chose to avoid frameworks and used only HTML, CSS, and D3.js. This allowed me to implement essential features such as panning, zooming, highlighting, and tooltips to display detailed information for each task. This minimal yet effective interactivity resolved the clarity issues, providing a functional and user-friendly visualization tool. (see /interface)

Usage

Usage:
  tlg [flags]

Flags:
  -k, --config          Path for the yaml configuration file. (default "config.yaml")
  -c, --color           Color mode. If turned on, the output is colored.
  -f, --format string   Output file format, one of [svg, dot, png, jpg]. (default "svg")
  -g, --group           Group Layer. If turned on, nodes under the same layer are grouped together, which means they are placed next to each other if possible. (recommended)
  -h, --help            help for tlg
  -i, --input string    Root directory for yaml files. (default ".")
  -l, --layout string   Graph Layout. Currently support [circo, dot, fdp, neato, osage, patchwork, sfdp, twopi]. (default "dot")
  -n, --no-reach        Turn this on to skip the reachability analysis.
  -o, --output string   Output file path. (default "graph")
  -r, --reach string    Output file path for the reachability analysis report. (default "reachability.json")
  -s, --size string     Graph size. Currently only support [fhd, a3]. (default "fhd")

Task YAMLs

A task configuration (input) should look like this:

task: "task_name"
task_id: "task_0"
start_date: "2024-01-01"
end_date: "2024-12-31"
frequency: 1
unit: "day"
queue: "cl"
level: "lv1" # tld uses this to group tasks
runtime:
  directory: "/data/tasks"
  executable: "python"
  file: "task"
  extension: "py"
dependency: # dependency tasks, this entry is optional
  - task_id: "task_1" # links to another task
    storage: "s3://data/tasks/task_1"
    unit: "day"
    frequency: 1
    start_date: "2024-01-01"
    end_date: "2024-12-31"
  - task_id: "task_2" # links to another task
    storage: "s3://data/tasks/task_2"
    unit: "week"
    frequency: 2
    start_date: "2024-01-01"
    end_date: "2024-12-31"

Config YAML

The configuration file, config.yaml, should look like this:

# color mapping for task levels
colors:
  # level_name: color_hex
  lv0: "#0074FF"
  lv1: "#17C3FF"
  lv2: "#7ADEF4"
  lv3: "#40FDCB"
  default: "#FFAE10"

You can have your own mapping.

Run the Source

You need to have your Golang 1.20+ environment up and set, then you can do the following:

Test Run

go run main.go {-i [taskYamlRootDir]} {-o [targetFile]} {-f [format]} {-g} {-l [layout]} {-c} {-n} {-r [reachabilityFile]}

For example

# for colored lineage
go run main.go -i ./mock-tasks -o dot.svg -f svg -l dot -c -g
# for bw lineage
go run main.go -i ./mock-tasks -o dot.svg -f svg -l dot -g

Compile and Run

# compile
GOFLAGS=-mod=mod go build -o bin/tlg main.go

# run the binary
./bin/tlg {-i [taskYamlRootDir]} {-o [targetFile]} {-f [format]} {-g} {-l [layout]} {-c} {-n} {-r [reachabilityFile]}

Project Organization

cmd: for cli
dot: graph construction and rendering
interface: simple interactive web interface
mock-tasks: a set of mock YAML files which simulates a real-world data pipeline configuration
reader: YAML reader for reading task configurations
schema: data schema

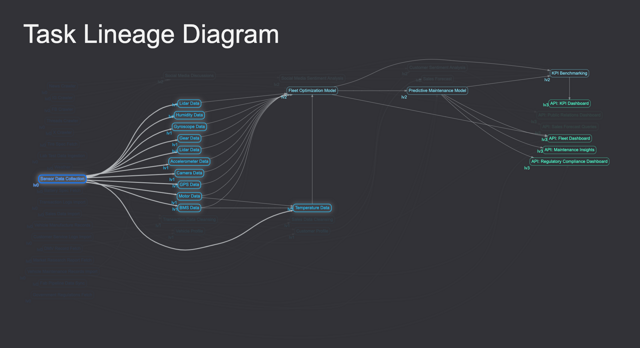

Fig. 2 - Highlighting a task to show the entire DAG
